Grain Silo Storage
We are committed to developing a comprehensive grain logistics system that spans the entire post-harvest process—from grain drying and storage to the distribution and delivery of bulk grain. Our approach emphasizes overall control and general contracting services, ensuring seamless integration across all stages of the grain supply chain.
Grain storage silo equipment primarily used for storing powdery or granular materials such as cement, fly ash, and grain such as corn ,wheat etc .Based on the manufacturing process, the grain storage silo can be divided into assembly silos, spiral silos, etc.
Grain storage silo (Assembly Silo )introduction :
Grain Storage Silo(assembled type ) Components & Features:
1. Overview
The corrugated board used in the grain storage silo production line offers several advantages:
- High precision
- Good compatibility
- High strength
- Easy to assemble
- Strong tightness
- Good fitting after assembly
2. Top Components
- Silo Top Cone: Supports the roof, allows material entry, and houses temperature sensors.
- Wind Cap: Composed of cap, duct, and flange; helps ventilate the silo.
- Silo Roof: Made of hot dip galvanized plate with double bending for strength and sealing.
- Safety Ring: Ensures worker safety on the silo roof.
- Manhole Gate: Allows access for maintenance.
- Wind Resistance Ring: Enhances structural integrity against wind.
- Warehouse Top Enclosure: Ensures safe maintenance and installation.
3. Structural Elements
- Corrugated Plate: Main steel structure, known for high strength, durability, and ease of assembly.
- vertical Column: Adds strength and stability to the structure.
- Bolt Set with Gasket: Connects silo structure; includes rubber cushion to prevent leakage and corrosion.
Capacity and Size
Single grain storage silo capacity: Over 18,000 tons
Diameter: Up to 32 meters
Noted: All Sio can be made by customer demands .
Project show :
Other auxiliary equipment:

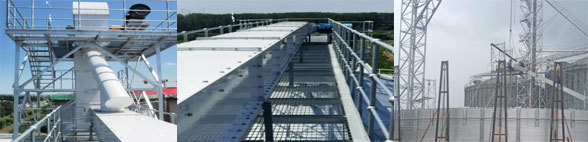

Frame and walkway :
1.The structure is prefabricated using hot-dip galvanized components and assembled on-site. Each level features a rotating ladder,
toothed anti-slip galvanized steel grating, and a resting platform.
2.The top level features a maintenance platform that is safe, sturdy, durable, and aesthetically pleasing, with guardrails no less than 1.2m high to ensure the safety of personnel during access and maintenance.
If customized design is accetp or not ?
1: The selection of prefabricated steel silos is fixed, and the diameter cannot be changed.
About installation, how to install? How much is the installation fee?
2: Guided installation .
3: What materials are used for your steel warehouse?
At the top of the warehouse, the barrel is a galvanized steel sheet, the cone bottom with a diameter of 4.5m is galvanized sheet, and the cone bottom can be galvanized or carben steel .
